- 【NOTE】: Dear customers, Thank you for your purchase. This lcr analyser provides ONE YEAR WARRANTY, any question please feel free to contact us, thank you.
- 【Test frequency/level/ accuracy】：100Hz,120Hz,1KHz,10KHz,40kHz,100KHz; 0.6Vrms; 0.30%
- 【Measuring rate】:Main parameters: 5 bits, secondary parameters: 5 bits; L：0.000μH～2000H，C：0.000pF～20.000mF，R：0.0001Ω～200.00MΩ
- 【Measurement parameters】Measurement parameters: Main parameters: L/C/R/Z, Sub-parameters: X/D/Q/theta/ESR; Electrolytic capacitor mode supported
- 【Others】: 2.8’’ TFT display; Adjustable backlight brightness; automatic shutdown time; open circuit and short circuit calibration

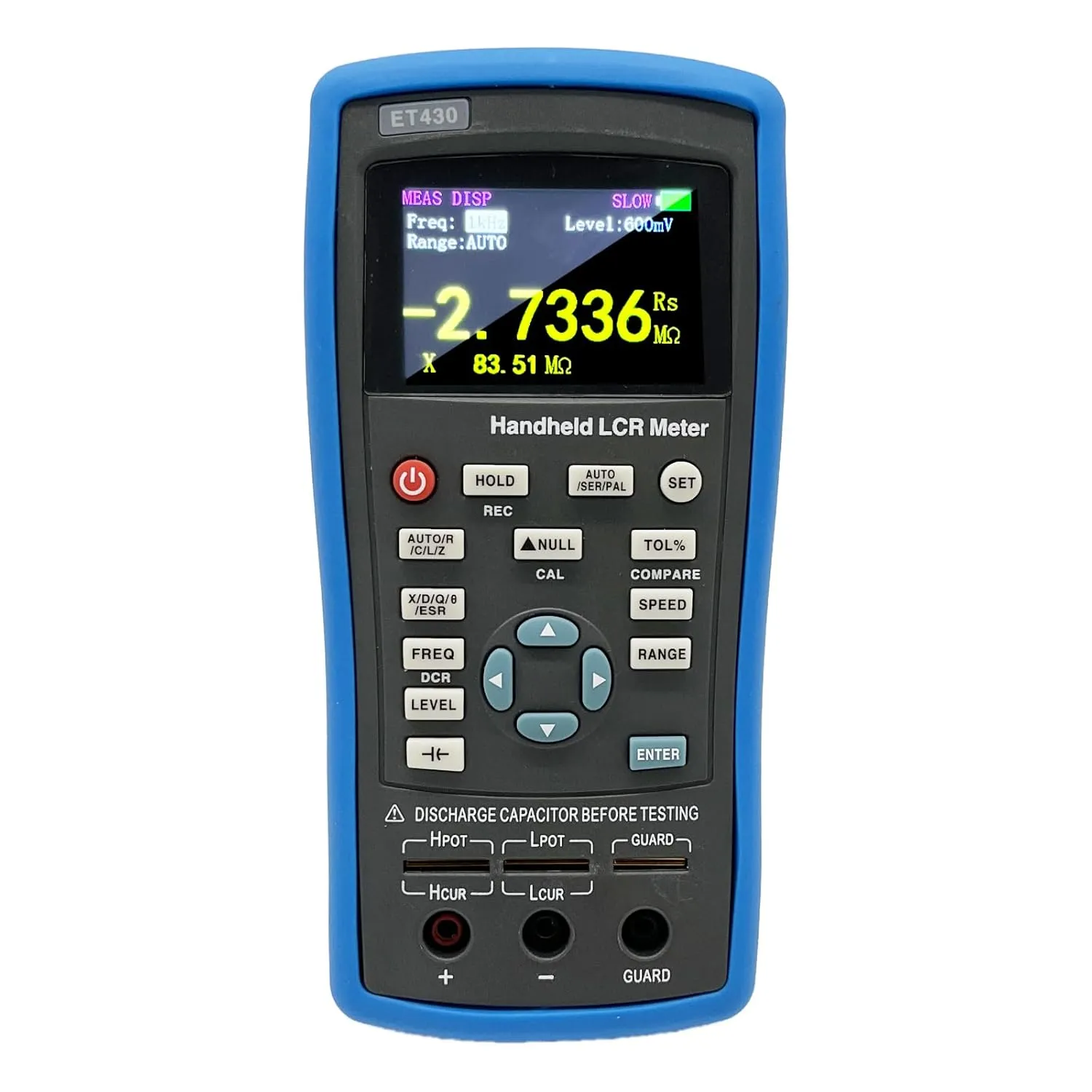

ET430 hand-held lcr Meter sets 2.8 inch TFT display, flexible and convenient button operation and full speed USB communication in one; large capacity lithium battery can ensure long-term work. Functionally, it has not only comprehensive measurement parameters, but also deviation measurement and screening. The output frequency can be continuously adjusted.
【Main features】: ¤ Test Frequency:100Hz,120Hz,1KHz,10KHz,40kHz,100KHz;Accuracy: 0.3%
¤ Supporting Electrolytic Capacitance Measurement;
¤ Automatic Recognition of Component Measurement;
¤ Support screening and deviation measurement;
¤ 2.8-inch TFT display, 4-bit semi-display;
¤ USB communication interface;
¤ Large capacity lithium battery power supply;
¤ Support SCPI protocol;
¤ Provide system settings, can configure language, buzzer, screen brightness and so on according to their own requirements;
¤ Adjustable measuring speed, manual and automatic range;
¤ Short circuit correction with open circuit; ¤ Provide multiple test ports.
【Standard accessories】:
¤ Mini-USB data Wires; ¤ Power adapter;
¤ Short circuit chip;
¤ Red&black rubber plug;
¤ Large capacity lithium battery
- Package Dimensions : 11 x 9 x 3 inches; 2 Pounds
- Batteries : 1 Lithium Ion batteries required. (included)
- Date First Available : June 28, 2023
- Manufacturer : HZZC
- Country of Origin : China
